Cherso Light & Simple
CS-2000S Two-Component Floor Stain

CS-2000S Two-Component Floor Stain

A and B two-component solvent-based high-performance floor stain. Formulated with modified epoxy resin and a specialized curing agent, it delivers superior chemical resistance and mechanical strength. Ideal for industrial environments requiring protection against acid, alkali, and salt corrosion, providing long-term protection and decoration.

Chemical Plant WorkshopElectroplating FactoryPharmaceutical FactoryWastewater Treatment PlantLaboratoryAcid and Alkali Storage Area
Get a Quote

Application Effect Showcase

App Effect 1
App Effect 2

Technical Specifications

Authoritative Test Report

Testing Agency: Quality Supervision and Inspection Center for Aging of Chemical Synthetic Materials (Guangzhou Aging Institute)
Report No. TL26040110 | Testing Period: 2026/3/4 to 2026/4/1

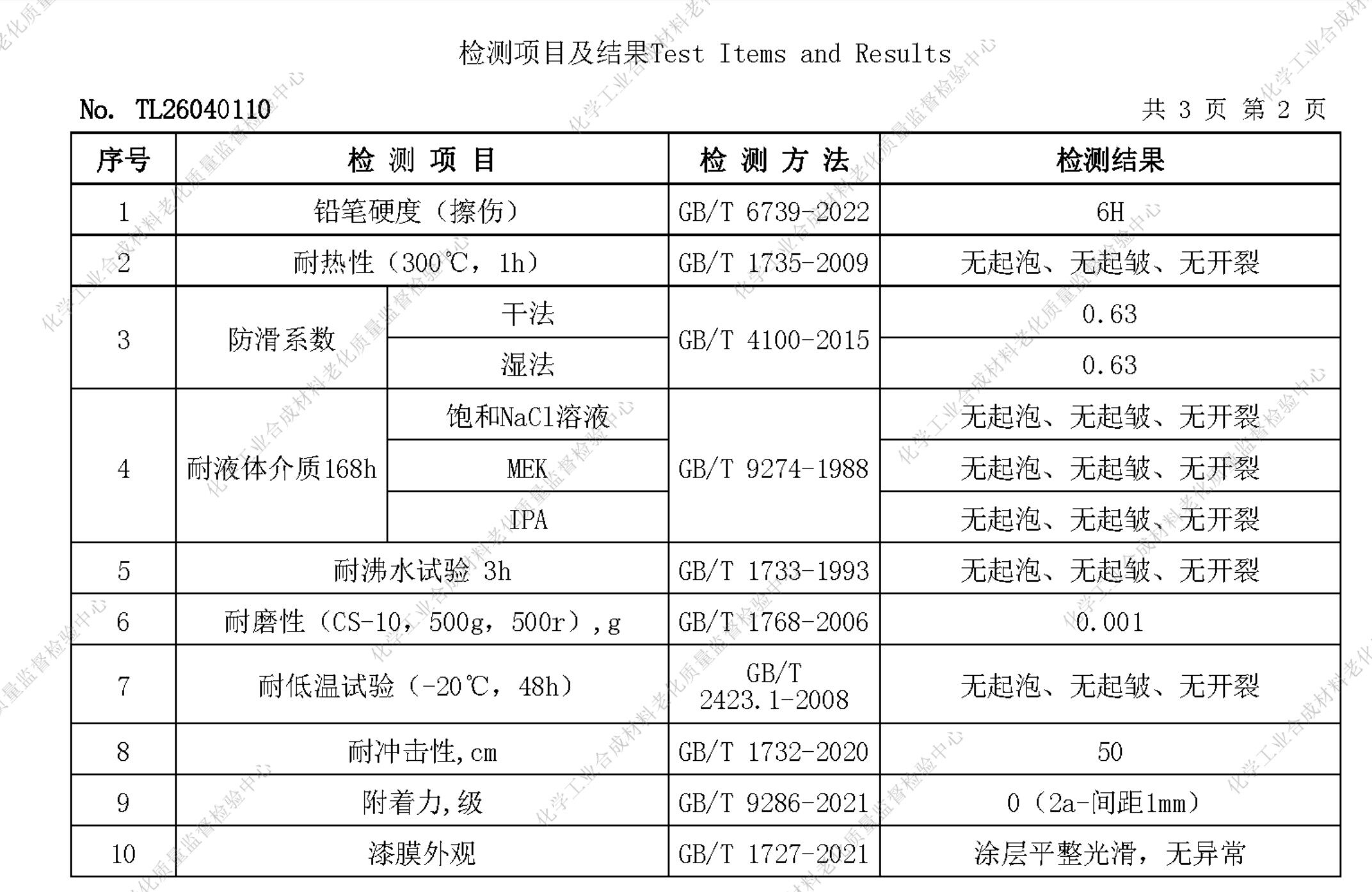

CS-3200 Test Report - Test Items and Results
AppearanceMulti-color Viscous Liquid
RatioA:B = 1:1 (by volume)
Solid Content≥90%
Density1.25±0.05 g/cm³
Theoretical Usage0.12-0.15 kg/m² (thickness 0.2-0.4 mm)
Probation Period≥60 minutes (25°C)
Drying timeSurface dry: 8-10 hours, Fully cured: 96 hours
Pencil Hardness≥3H
Durability≤0.02g
Impact resistance60 kg·cm
Acid resistance10% H₂SO₄, no issues for 30 days
Alkali resistance10% NaOH, no abnormalities after 30 days
Salt tolerance10% NaCl, no abnormalities for 30 days
Solvent ResistanceResistant to gasoline, toluene, and xylene
Bond Strength≥2.5 MPa
FlexibilityΦ10mm shaft bent without cracks
Expiration dateGroup A: 18 months, Group B: 12 months

Construction Process

01

Sandblast to Sa2.5 grade, with a surface roughness of 50-80 μm.

Sandblast to remove mill scale and rust, creating an anchor profile. Apply the primer within 4 hours after blowing clean with compressed air.

02

Apply epoxy sealer primer to penetrate and reinforce.

Apply 0.15-0.2 kg/m² to fully penetrate the substrate's micro-pores. Allow to dry for 24 hours.

03

Scrape epoxy putty to fill pores and cracks.

Material: Quartz powder : hardener = 2:1:0.5, apply with a scraper 1–2 times, let dry for 24 hours, then sand smooth.

04

Apply roll-coated intermediate coating to establish a corrosion barrier.

Apply 0.1-0.12 kg/m² using a cross-hatch method; allow to dry for 24-48 hours.

05

Apply polyurethane topcoat to enhance weather resistance.

Apply at a rate of 0.08-0.1 kg/m², spread evenly, and allow to dry for 48-72 hours. Total dry film thickness ≥ 0.5 mm.

Important Notes

Construction Safety and Quality Control

  • The construction site has good ventilation and is equipped with explosion-proof devices.
  • Operators must wear full protective gear.
  • Strictly control mixing ratios and pot life
  • Substrate treatment quality directly affects the final result.
  • The time interval between each process step must not be less than the specified duration.
  • No entry during the curing period.
  • Dispose of waste in accordance with hazardous chemical regulations.
  • Keep away from open flames and high-temperature areas.

Maintenance Guide

Regularly inspect coating integrity
Clean up chemical spills immediately
Use a dedicated neutralizing cleaner
Repair damaged areas within 24 hours.
Perform a comprehensive inspection annually
Establish a corrosion maintenance record

Need professional construction services?

We provide professional flooring installation teams to ensure optimal results.

Contact a professional team
Yue ICP Bei 2026083397 Hao-1
